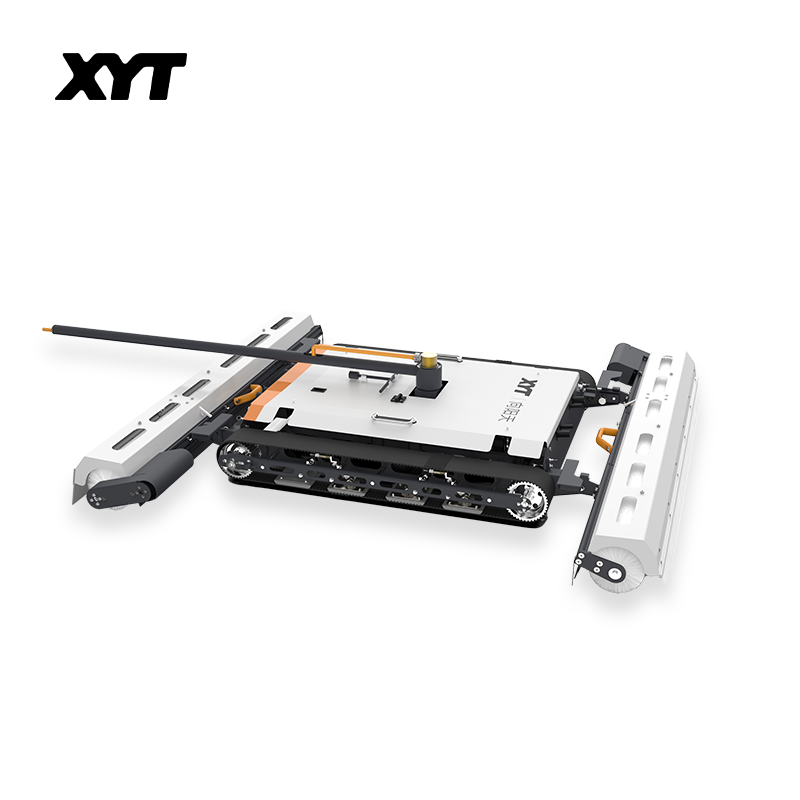

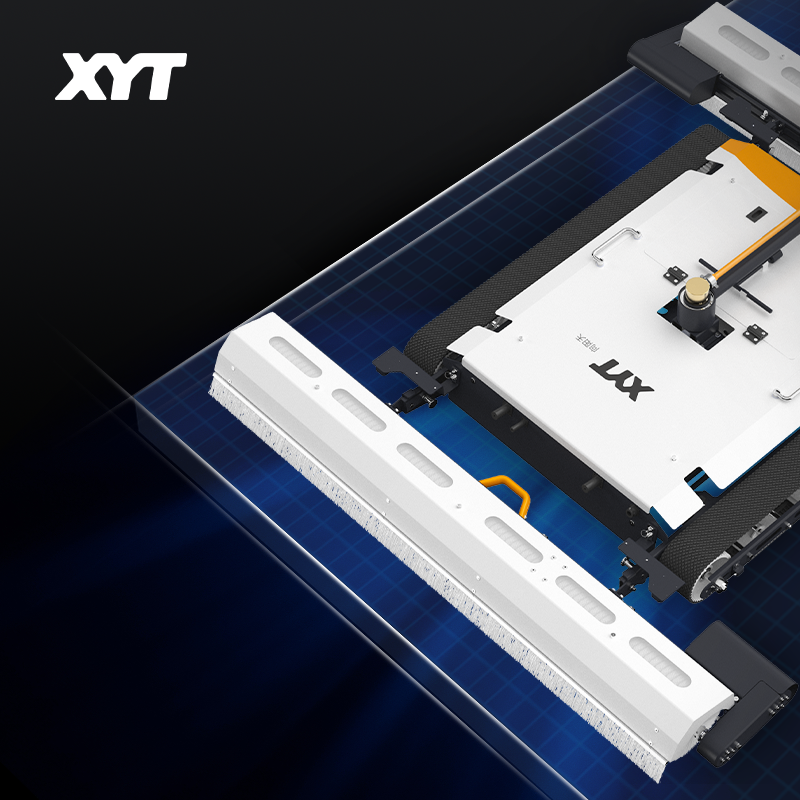

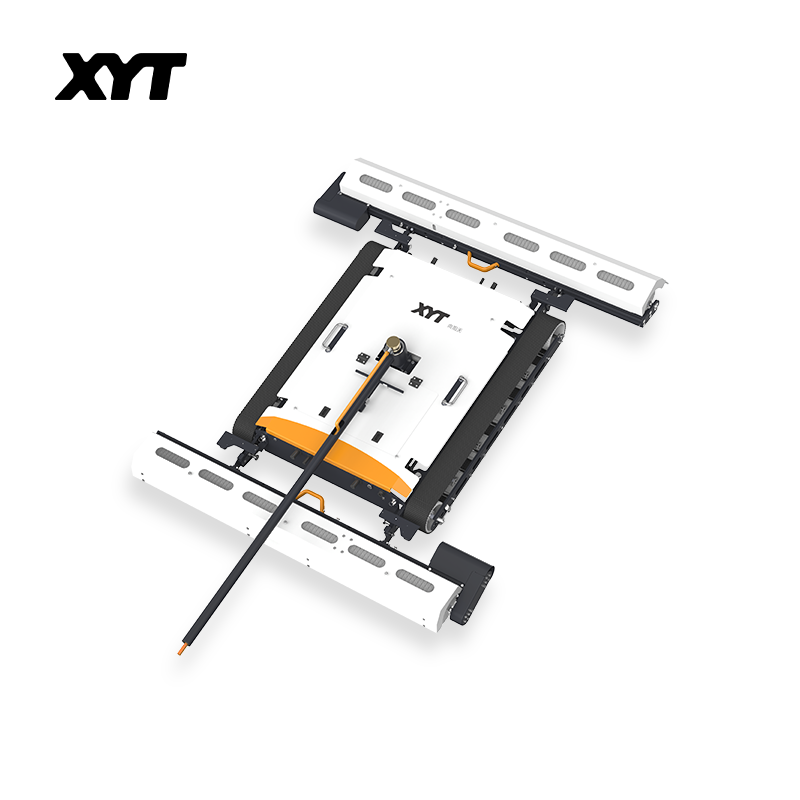

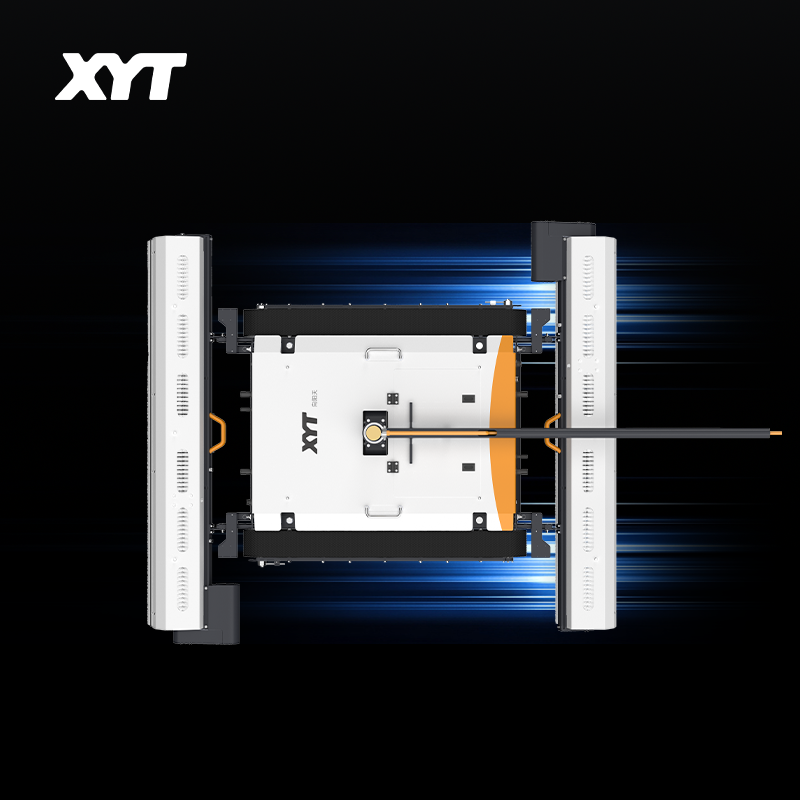

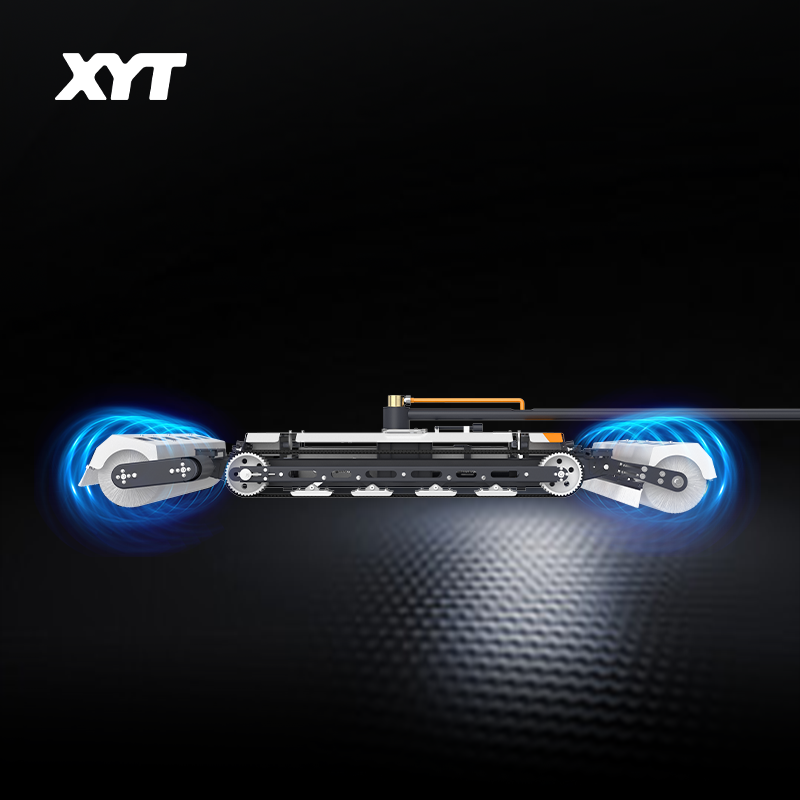

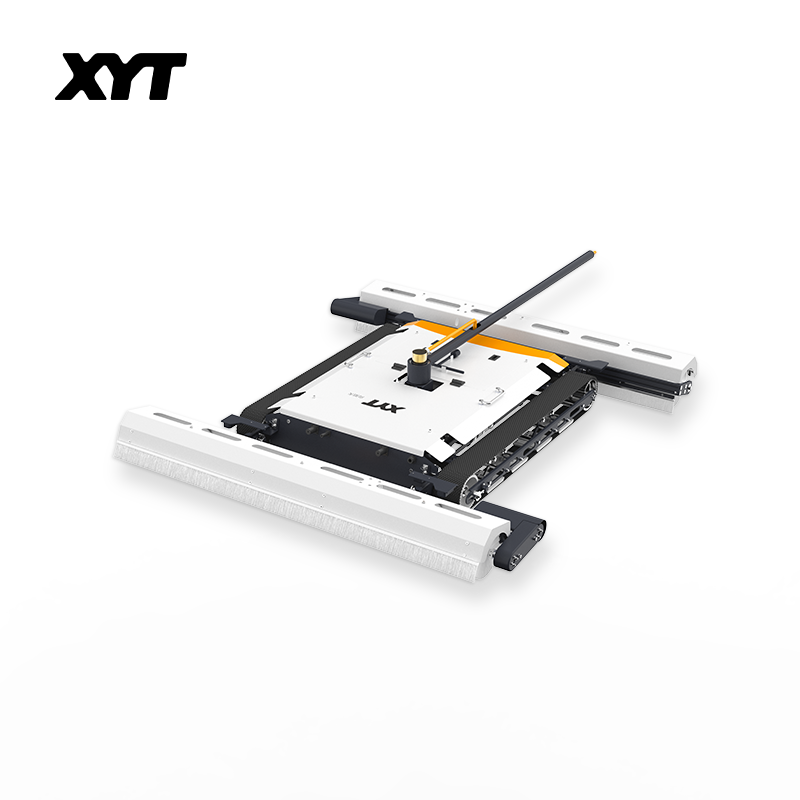

Solar Panel Cleaning Robot - Model X7

Maximize solar panel efficiency with the X7 Solar Panel Cleaning Robot, engineered for high-speed, automated cleaning of large-scale solar installations. With a 135cm cleaning width and advanced brush system, the X7 ensures fast, safe, and thorough washing with minimal labor. Built with aluminum alloy, stainless steel, and high-quality plastics, this durable robot is ideal for commercial solar farms and large rooftop arrays.

The X7 operates on a 48V/30Ah lithium battery with a runtime of 4–5 hours, supporting up to 800 charge-discharge cycles with globally recognized EVE Energy cells. Its tracked vehicle design ensures stability on inclined panels, while brush rotation speeds of 230–250 r/min and 6 front + 4 rear nozzles guarantee efficient, uniform cleaning.

Remote-controlled operation with a 100m range makes it easy to manage the robot from a safe distance. The X7 is designed to handle various environmental conditions, with IP65 protection, a temperature tolerance of -20°C to 50°C, and support for water temperatures from 0–50°C. Its lightweight but durable construction and precision engineering ensure a design life of 5 years.

Key Specifications

• Cleaning Width: 135 cm
• Cleaning Efficiency: ≈1000–2500 ㎡/h
• Chassis Width: 66 cm
• Nozzles: 6 front / 4 rear
• Dimensions (L×W×H): 115 × 145 × 35 cm
• Total Weight: 51 kg

• • Vehicle: 30 kg

  • Brush Head: 10.5 kg

  • Rear Scraping Device: 2.5 kg

  • Battery: 8 kg

• Tracked Vehicle Lithium Battery: 48V/30Ah
• Battery Runtime: 4–5 hours
• Charging: AC110–240V, DC48V 4.5A, 8 hours
• Drive Motor Power: 100W × 2
• Brush Head Motor Power: 150W
• Brush Rotation Speed: 230–250 r/min
• Bristle Material: Nylon (PA), 0.3 mm diameter
• Travel Speed: 20–40 m/min (variable)
• Tilt Angle Capability: Low 20°, Medium 15°, High 10°
• Horizontal Crossing Capability: 25 cm
• Remote Control: 100 m range, 3.6V/6000mAh battery, 6–8h charging, 30h runtime
• Supported Flow Rate: Max 30 L/min (pump dependent)
• Applicable Water Temperature: 0–50°C
• Ambient Temperature: -20°C to 50°C
• Protection Rating: IP65
• Design Life: 5 years
• Materials: Aluminum alloy, stainless steel, rubber, plastics (PA, PP)
• Power Supply: Lithium battery
